Description

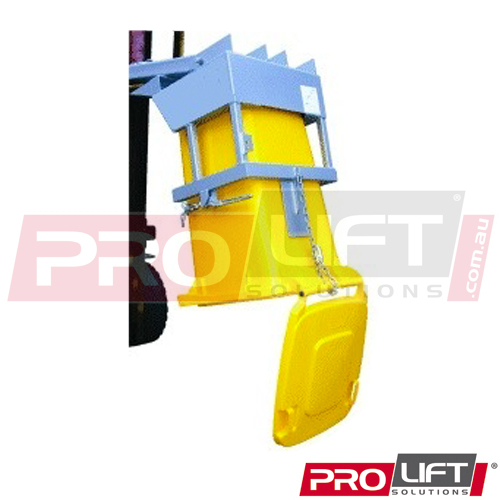

The type NWB-T1 Wheelie Bin Tipper has been designed for emptying a standard 240 litre plastic bin. The bin is wheeled into the cradle and secured by the safety chain attached to the backrest allowing the bin to be lifted/transported about the workplace and emptied. The tipping operation is simple and safe with the operator never having to leave his seat.
Standard finish on all Wheelie Bin Tippers is zinc

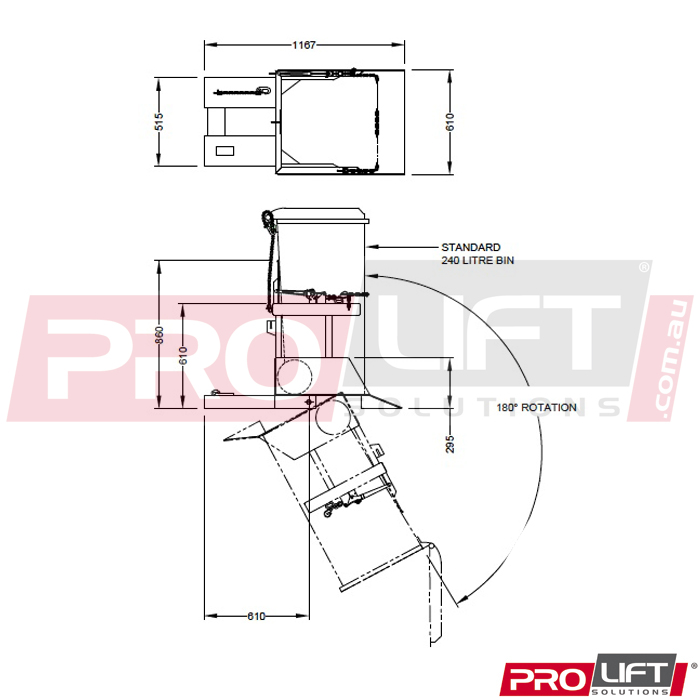

Specifications:

• Safe Working Load (SWL) 500kg
• Load Centre 1200mm
• Unit Weight 100kg
• Pocket Size 165 x 65
• Pocket Centres 340mm
• Capable of 180° Rotation
• Horizontal C of G 720mm
• Vertical C of G 90mm

NOTE:

• Lead times may apply unless in stock.

• Wheelie Bin Tipper meets or exceeds relevant Australian Standards, and is supplied with instruction manuals, certificates of compliance, and test certificates where required.

Should you have any questions, email us at sales@prolift.com.au
