Description

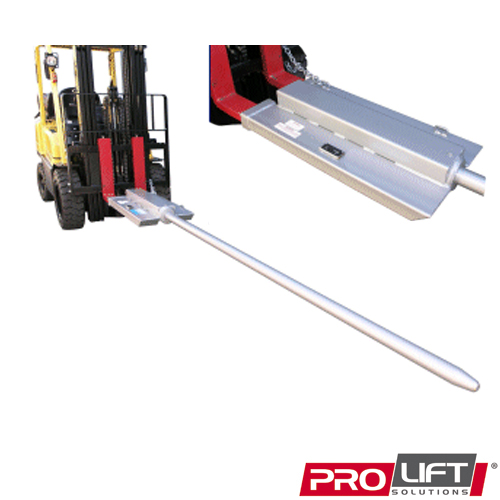

Slip-on Roll Prong suitable for fabric, cable and coil products. Can also be used for carpet handling, but usage is generally restricted to larger forklifts due to the extended load centre created by the length of the tines. These attachments quickly adapt to almost any forklift and require only the connection of a safety chain to prevent unintentional disengagement. Prongs are manufactured from high tensile steel and can be made to any length.

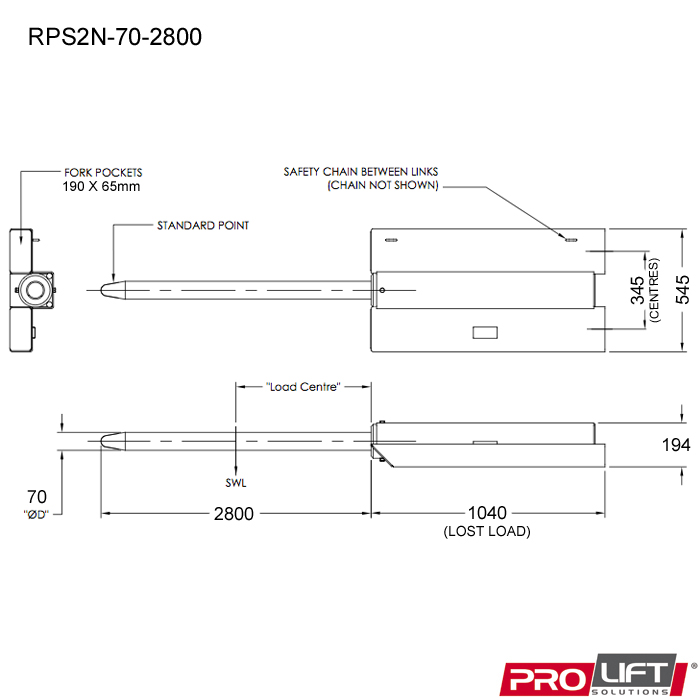

Type RPUS-H & RPUS-L Slip-on Roll Prongs are also available. The standard finish on all Roll Prongs is painted enamel. Please refer Diagram, Table & Specification sheets for full details.

SPECIFICATION

• RPS2N-70-2800
• Lost Load: 1040mm

• SWL: 510kg
• Unit Weight: 163kg
• Load Centre: 1400mm
• Hor C of G: 1535mm
• Standard Finish: Painted Enamel


Additional information
