Description

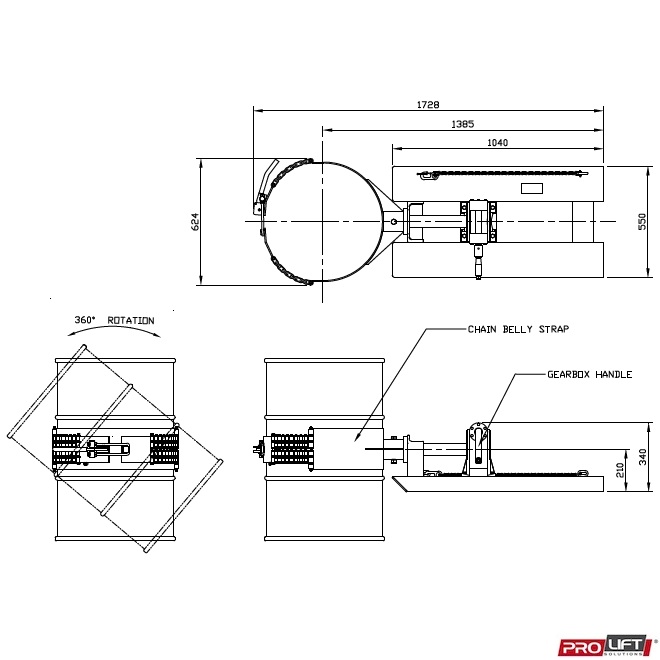

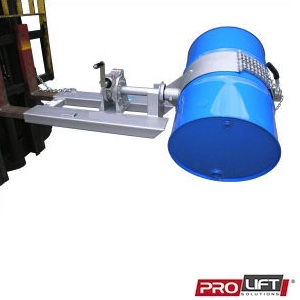

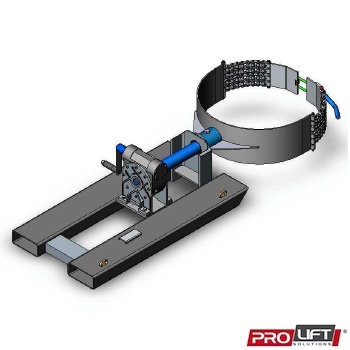

The type SW-NH Sideways Drum Rotator is designed to lift and rotate 205 litre Drums through 360°
perpendicular to the fork arms. Handle rotation via a Gearbox of the drum cradle ensures minimum effort
for fully controlled tipping, allowing complete emptying of the drum contents. A Chain Belly Strap
with an eccentric lock holds the Drum firmly in position.

This slip-on attachment requires only the connection of a safety chain to a narrow carriage Forklift.

The standard finish of this unit is painted enamel.

SPECIFICATIONS:
• Safe Working Load (SWL) 500kg
• Unit Weight 110kg
• 360° Rotation
• Load Centre 1385mm
• Pocket Size 165 x 65
• Pocket Centres 375mm
• Horizontal C of G 600mm

NOTE: Allow 1-2 weeks to manufacture unless in stock.
