Description

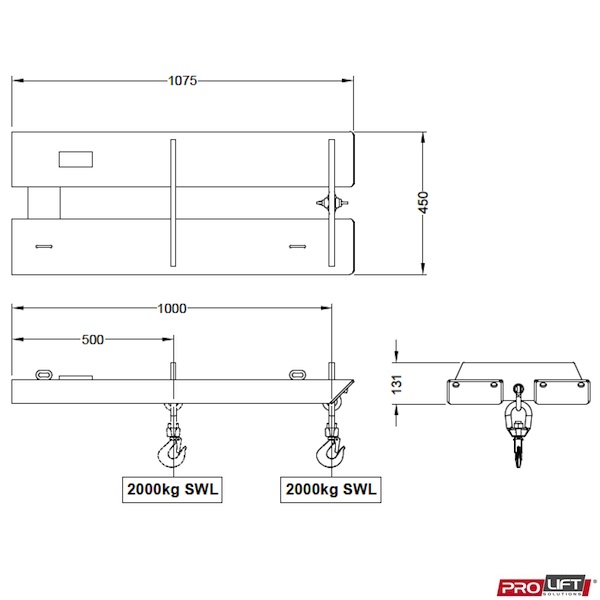

The type SJ2 Forklift Slip-on Jib has been designed as a simple Slip-on Jib attachment with 2 hook positions 500mm apart. Both hook positions have an SWL of 2000kg – refer diagram below.
This Jib attachment is held to the Forklift by a safety chain and comes
complete with a safety swivel hook.

Available in either galvanised or painted enamel finishes.

SPECIFICATIONS:
• Safe Working Load (SWL) 2000kg
• Unit Weight 45kg
• Load Centre 1000mm
• Pocket Size 165 x 65
• Pocket Centres 275 mm
• Horizontal C of G 600mm
• Vertical C of G 50mm

NOTE: Allow 1-2 weeks to manufacture unless in stock.

NOTE – When selecting a jib attachment check the pocket centres of the jib you wish to order. Those noted with the prefix SF, ST and SJW are fitted with wide pockets, and generally suit forklifts fitted with special hydraulic tine positioners.

The lift capacities stated are a structural rating for the jib only, and make no claim as to the suitability of the forklift. Actual forklift capacity may be less than the structural capacity of the jib. Check with the forklift supplier for actual working capacities.

In accordance with AS2359.1, when lifting with a jib attachment, the net lifting capacity should be 0.8 times the rating of the forklift, to allow for a swinging load.

If you have any questions, email us at: sales@prolift.com.au
