Description

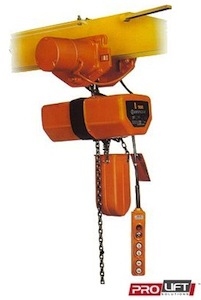

Hitachi Electric Trolleys allow a hoist to be fitted to a monorail or crane system, and have not only the hoisting, but also the travel of the hoist, controlled by a single control pendant. The Electric Trolley  is easily connected to the Hitachi range of electric chain hoists.

Features:

• Adjustable side rollers guide the trolley along the beam
• Covered gear wheels for protection against dust and water
• Specially designed traveling brake assures positive operation and long life.
• Un-flanged universal wheels which suit both parallel and tapered flanged beams
• Adaptable to suit wide beams
• Low maintenance
• High reliability
• Available in either single or dual speed

Note:

• Dual speed 21/5.3m/min
• 2ETN comes standard to suit girder 100-150mm

• Additional cost to suit wider beams 151-180mm

• Additional cost to suit wider beams 181-210mm
