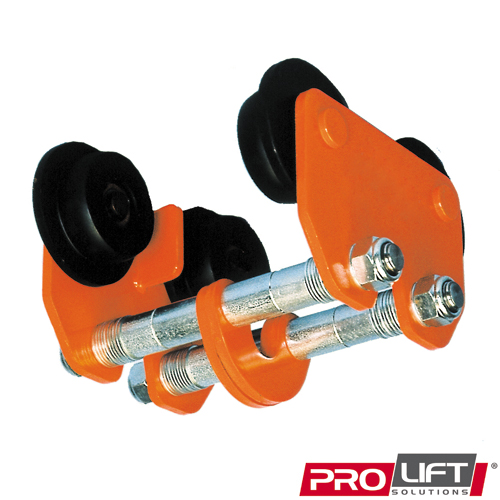

500kg Low Headroom Trolley PPT105

$301.00 ex. GST

SKU: series 1 twin pin sc ppt105 Category:



Prolift has your girder trolley requirements covered, with a wide range of push/pull girder trolleys to suit your application. Pacific Series 1 Girder Trolleys feature a strongly constructed, fully adjustable trolley which is designed to fit the flanges of both tapered and parallel beams. They are available as push or geared variety and comply with all relevant Australian Standards.


  • All Pacific girder trolleys are manufactured to comply with AS1418.2.
  • Choose from either push or hand-geared travel.
  • Twin pin configuration provides closer headroom than single pin variety.
  • Available to suit larger beam widths on request.
  • Fitted with anti-drop plates for improved safety and compliance.
  • Can be supplied close coupled to suit most Pacific hoists.

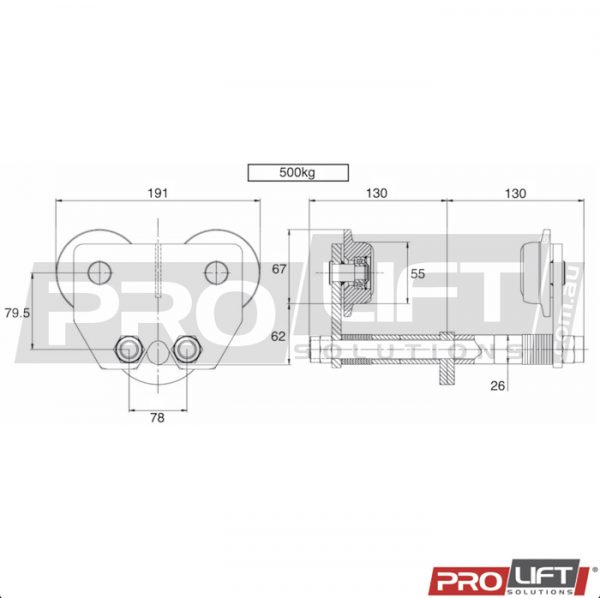

  • Rated Capacity: 500kg
  • Beam width: 62 – 172mm
  • Min. curve radius:  0.8m
  • Net weight:  6.5kg
  • Headroom: 62mm


  • Wider beam widths available on request from 2,000kg capacity only, email prolift for price.
