$2,066.00 ex. GST

SKU: m (6181prc) sc(zec130) Category:

Description

Description

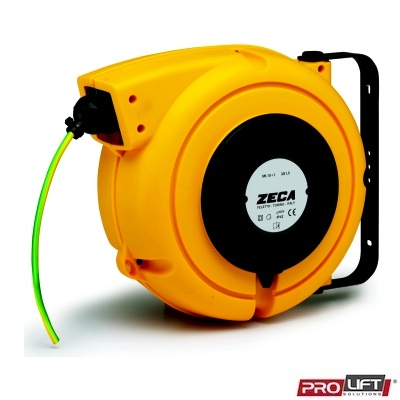

ZECA Spring Operated cable Reels

  • Model: Zeca (6181PRC)
  • 15 metres 4 X 1.5mm² cable
  • 10 amps

These light weight electric cable reels provide a safe and economical method of supplying power to moving machinery. Designed for indoor and outdoor installation, the reels are spring loaded allowing the cable to be pulled out and automatically recovered as the machine moves back and forwards. Minimal assembly required and a range of cable lengths available.

Technical data:

  • Die-cast aluminium case
  • Cable roller guide
  • Ratchet stop device every 50 cm. All cable reels are supplied with predisposition for cable-stop device off. It can be easily inserted.
  • Double earth contact
  • Collector insulating power 2,5 Kv.
  • Brass-rings collector and special brushes with minimum impedance drop
  • Slipring with brass rings and brushes
  • Protection degree IP42
  • Working temperature -5°C/+40°C
  • Delivered without cable at feeding side
  • Available both with PVC cable and rubber cable.



If you have any questions or specific requirements, email us at: sales@prolift.com.au

Additional information

Additional information

Weight 0.00 kg
