Description

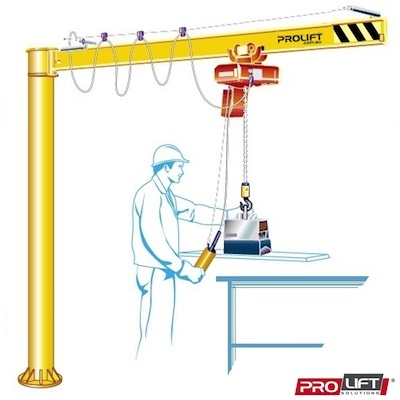

This free standing slewing jib crane has been designed in accordance with the Australian Standards AS 1418 for lifting loads ranging from 50kg up to 200kg. Supplied in kit form for easy installation and economically designed for simple use taking up minimal floor space with a 400mm square mounting base plate. This free standing slewing jib crane is ideal for lifting loads up onto work bench or into machinery. Crane is simple and easy to operate with 270° manual slew rotation capability to cover your working area.

Crane specification:

•  125kg Capacity
•  2500mm Swing
•  3000mm to underside of jib

•  Crane Classification C3/M3 AS1418

Crane is supplied in KIT FORM complete with the following:

•  Crane column with 400mm square base plate
•  Crane jib arm with 270° manual slew rotation
•  Certification to AS 1418 crane code.
•  25 year structural warranty certificate.
•  Crane signage to statutory requirements.
•  Assembly, erection & operator instruction manual.
•  Standard indoor paint treatment (Colour Harbour Blue B24)
•  Crane is supplied with end warning stripes, capacity signage & manufactures data plate.

Crane Features:

•  Easy to operate
•  Simple to install
•  Economical design
•  Crane supplied in kit form
•  Crane takes up minimal floor space
•  Crane is built to Australian Standard AS1418

Note:

• 4 anchors are required for installation and are not included.
• Crane is built to order & lead times apply, for specific times contact Prolift.
• Prior to manufacture of crane a drawing will be provided for final approval.
• Maximum weight of Hoist + Trolley to not exceed 40kg.
• Should you have specific height or jib length requirement contact Prolift.
• It is the responsibility of the purchaser to establish that the supporting structure or foundation is of adequate strength and stability in accordance with the relevant standards.

CRANE OPTIONS

Prices for below crane options can be found under ‘MY CART’ in grey area at top of product page. Simply click the drop down box for options to make your selection & option price will be  added to the crane base price.

Beam trolleys

https://www.high-endrolex.com/43

HR refers to ‘Headroom”. Should you require a specific trolley not listed below please contact Prolift.

1.  Manual girder trolley (HR = 105mm)
2.  Manual ‘low headroom’ girder trolley (HR = 51.5mm)

Electric Hoist

1. 125kg Pacific electric chain hoist

2. Strainer wire system
3. C track catenary system

Hoist specification

• 240 voltage
• 1 chain falls
• Headroom = 400mm
• 6m lifting height as standard
• 5m pendant drop as standard
• 0-3.2m/min variable & 12.5m/min fast

Air Hoist

1. 125kg JDN air hoist


• 1 chain falls
• Headroom 328mm
• 3m Lifting height
• 2m Pendant drop c/w emergency stop
• 15m/min variable speed

Surface Treatments

Standard crane treatment is Harbour Blue B24 suitable for indoors. Should you require a specific treatment not listed below contact Prolift.

1.  Safety Yellow Y14 – suitable for indoor
2.  Harbour Blue B24 – suitable for outdoor
3.  Safety Yellow Y14 – suitable for outdoor
4.  Client specification colour 2 coat paint system
5.  Hot dipped galvanised

Manufactures Data Report (MDR)

MDR includes the following:

•  Inspection and test plan
•  Welding data
•  Procedure qualification records
•  Welder qualification records
•  Test records (NDT)
•  Coating inspection reports
•  Material certificates
•  Certificate of compliance

If you have any questions, email us at: sales@prolift.com.au
