180 DEG -Underbraced Wall Mounted Slewing Jib Crane

$0.00 ex. GST

SKU: assistant aw Category:

Description

Description

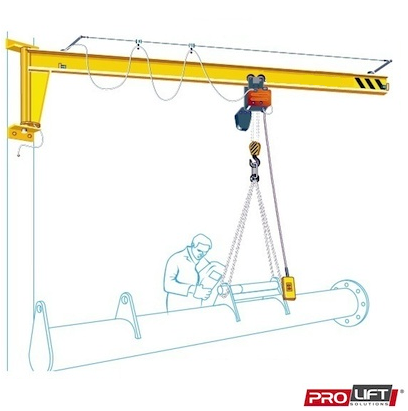

When headroom is a problem, this design allows maximum height of lift. The ASSISTANT wall mounted slewing jib crane provides simple handling & ease of movements with clamp around or surface mounted brackets, positioned to suit your lifting height requirements.

Crane comes complete with the following:

  • Standard wall mounting brackets. (Wall fixing bolts not included) (Image shows surface mounted brackets)
  • Set of signs to meet workcover requirements.
  • 25 year structural warranty certificate.
  • Operator and maintenance manual.
  • Crane is supplied with end warning stripes, capacity sign & data plate.
  • Standard indoor treatment – Blast class 2.5 / 50um 1 coat Dulux Luxol 4 Enamel /  Finish colour harbour blue B24

Note:

  • Allow 2-3 weeks to manufacture crane with standard indoor treatment.
  • Allow 3-4 weeks for all other surface treatments, e.g. yellow colour, 2 coat system or H.D. Gal ( Email or phone to discuss your requirements)
  • Swing distance can be modified on request.
  • Suitability of existing wall for imposed loads is the responsibility of the purchaser.

Features:

  • Model Capacity Range: 125 to 4000kg
  • Outreach Range: 2m to 12m
  • Maximum Slew: 180 degrees
  • Surface Treatment: Indoor or Outdoor Paint System
  • Cranes Built to Australian Standard AS1418 and Quality Standard ISO9001

Crane Options:

  • Hoist and Trolley (motorised or manual)
  • Jib Lock (single and multiple position)
  • Slew Handle / Jib Lock (for manual jib slew)
  • Slew limits
  • Motorised Slew
  • Crane Electrics
  • Explosion Protection in accordance to ATEX
  • Custom Paint Systems, Hot Dip Galvanised


If you have any questions, email us at: sales@prolift.com.au
