300kg (MAX) Extendable

$1,590.00 ex. GST

SKU: myt300kg Categories: ,

Description

Description

This is a low maintenance telescopic jib crane, made from high quality durable steel. The perfect solution for anyone that has to safely load, unload or handle heavy loads up to 300kg. Designed for single handed operation and can be mounted on trucks, trailers, pontoons and similar structures. Suitable for mounting into the back of your truck, ute or trailer for loading or unloading freight.

To raise the load simply wind the handle. To lower the load wind the handle in the reverse direction. The winch incorporates a load friction brake which is automatically activated when the handle is released keeping the load safety in position at all times.

Crane is fitted with a 360º mechanical slew by means of a worm drive gear. This eliminates the danger of the boom swinging out of control when the load is being lifted or lowered. The boom can only be rotated by operating the slew control handle.

PRODUCT FEATURES

  • Folds down when not in use.
  • Simple to install and easy to operate.
  • Allows accurate placement of loads even in confined spaces.
  • Can be supplied with manual brake winch or DC electric winch.
  • Rugged construction with low maintenance powder coated finish.
  • Bearings and pre-lubricated bushes fitted to make slewing easier.

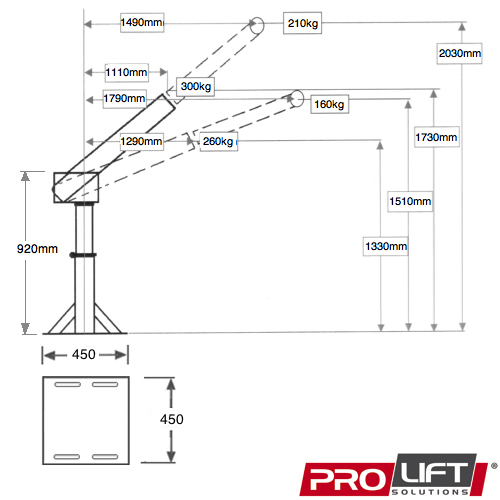

SPECIFICATIONS & DIMENSIONS

  • Base Plate 450mm x 455mm
  • 300kg maximum lift capacity
  • Rope length 6m with manual brake winch C/w weighted hook.
  • Overall weight – 78kg (Manual Brake winch) & 83kg ( DC winch)



NOTE: Crane is NOT suitable for lifting or lowering of people.
