300kg (MAX) Extendable (HDG)

$1,875.00 ex. GST

SKU: model f12643gr (gal with rope) Categories: ,

Description

Description

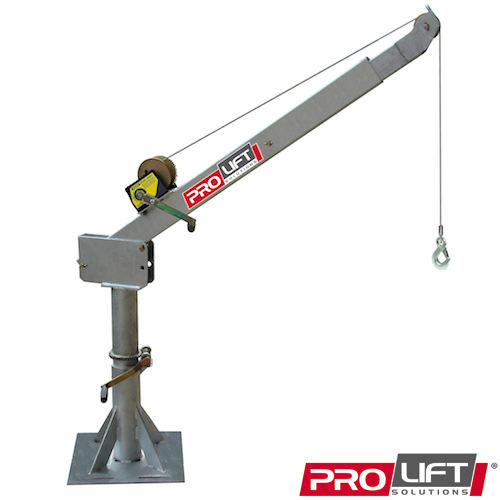

The simple design of this crane means it is easy to assemble and can be fitted almost anywhere including Jetties, ute’s, trailers and a wide variety of fixed platforms. To raise the load simply wind the handle. To lower the load wind the handle in the reverse direction. The winch incorporates a load friction brake which is automatically activated when the handle is released keeping the load safety in position at all times.

Crane is fitted with a 360º mechanical slew by means of a worm drive gear. This eliminates the danger of the boom swinging out of control when the load is being lifted or lowered. The boom can only be rotated by operating the slew control handle.

PRODUCT FEATURES

  • Extendable Boom
  • Base Plate mounting
  • Adjustable Height Angle
  • Hot Dipped Galvanised finish
  • Maximum 300 kg Load Capacity
  • Heavy Duty design to Australian Standards
  • 360º Mechanical Slewing by means of worm drive gear
  • Manual Winch incorporating a load friction brake automatically activated when handle is released.

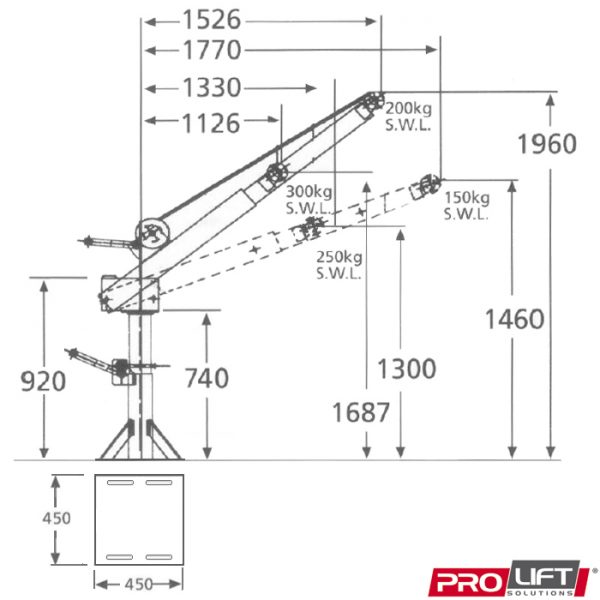

SPECIFICATIONS & DIMENSIONS

  • Overall weight – 110kg
  • Base Plate 450mm x 450mm
  • Finish – Hot Dipped Galvanised
  • Tested & Complies to AS1418.2
  • 7.5m wire rope (H.D.G.) c/w snap hook

CRANE OPTIONS

Prices for below options can be found under ‘MY CART’ in grey area at top of product page. Simply click the drop down box for options to make your selection & option price will be added to the crane base price.

  • Upgrade to 7.5m fibre rope c/w snap hook
  • Extra crane base assembly (450mm sq base, column & slew handle) Overall height ≈440mm

If you have any questions, email us at: sales@prolift.com.au
