Description

The MEISTER free standing slewing jib crane is designed for heavy lifting, able to rotate 360 degrees. Used indoors or outdoors for production lines, depatch areas or general workshop applications.

The MEISTER design allows maximum height of lift in restricted areas.

Crane comes complete with the following:

• Set of signs to meet workcover requirements.
• 25 year structural warranty certificate.
• Operator and maintenance manual.
• Crane is supplied with end warning stripes, capacity sign & data plate.
• Standard indoor treatment – Blast class 2.5 / 50um 1 coat Dulux Luxol 4 Enamel /  Finish colour harbour blue B24

Note:

• Allow 2-3 weeks to manufacture crane with standard indoor treatment.
• Allow 3-4 weeks for all other surface treatments, e.g. yellow colour, 2 coat system or H.D. Gal ( Email or phone to discuss your requirements)
• Swing distance and height can be modified on request.
• Suitability of existing base structure for imposed loads is the responsibility of the purchaser.

Features:

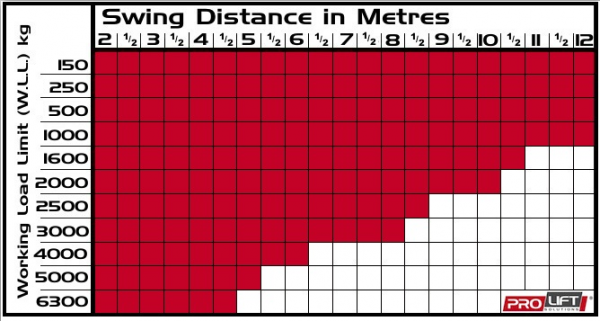

• Model Capacity Range: 150 to 6,300kg
• Outreach Range: 2m to 12m
• Maximum Slew: 360 degrees

• Surface Treatment: Indoor or Outdoor Paint System
• Cranes Built to Australian Standard AS1418 and Quality Standard ISO9001

Crane Options:

• Hoist and Trolley (motorised or manual)
• Jib Lock
• Slew limits
• Motorised or Manual Slew Drives
• Crane Electrics
• Explosion Protection in accordance to ATEX
• Custom Paint Systems, Hot Dip Galvanised

If you have any questions, email us at: sales@prolift.com.au
