Description

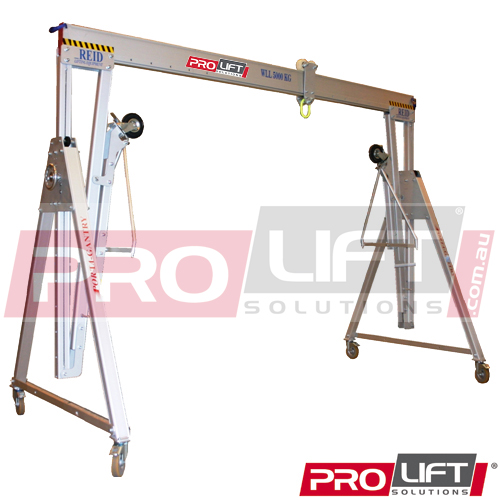

World’s first aluminium gantry crane with an impressive 5000kg lifting capacity.
This light weight mobile aluminium gantry crane is extremely versatile whilst being portable, safe and very strong.

Raise & lower crane beam in complete control using the inbuilt geared hand wheel system on each A-Frame to adjust beam height to required setting.

Moving the A-Frames around prior to attaching the beam is made easy with the built in stabilizing leg. In the ‘Stabilizer Leg’ mode, fold down & lock leg into place and your ready to move around, designed for use on flat, concrete or tarmac surfaces.

In the ‘Wheelbarrow’ mode the stabilizing leg is locked into position for maneuvering over rough ground and open areas. When finished, leg simply folds up out of the way.

Lightweight – Designed and engineered using aluminium, for unbeatable strength within manual handling guidelines. This means you can position the gantry crane quickly & easily, without any requirement for additional lifting equipment or large teams of workers.

Portable – Understanding the practicalities of lifting in the real world, so to ensure lifting equipment can get to site and be deployed easily, even in confined spaces. Compact in design for easy storage, transport and handling.

Safe – Testing every system to 150% of WLL means maximum safety to the end user.

Crane comes complete with
* 1 x trolley
* 1 x beam 4570mm long, rated to 5000kg
* 2 x A-Frames c/w geared wheel elevation system & stabilizing leg
* 360º load rated swivel-locking castor wheels
* Assembly & operation guide
* Test certificate & signage

https://www.high-endrolex.com/45

Features
* Portable
* Lightweight
* Versatile & maneuverable
* Quick & easy to assemble and dismantle
* 360º load rated swivel-locking castor wheels
* Adjustable beam height with geared hand wheel

Weights
* Beam = 15.42kg/m
* A-Frame = 106kg each
* Trolley = 10kg

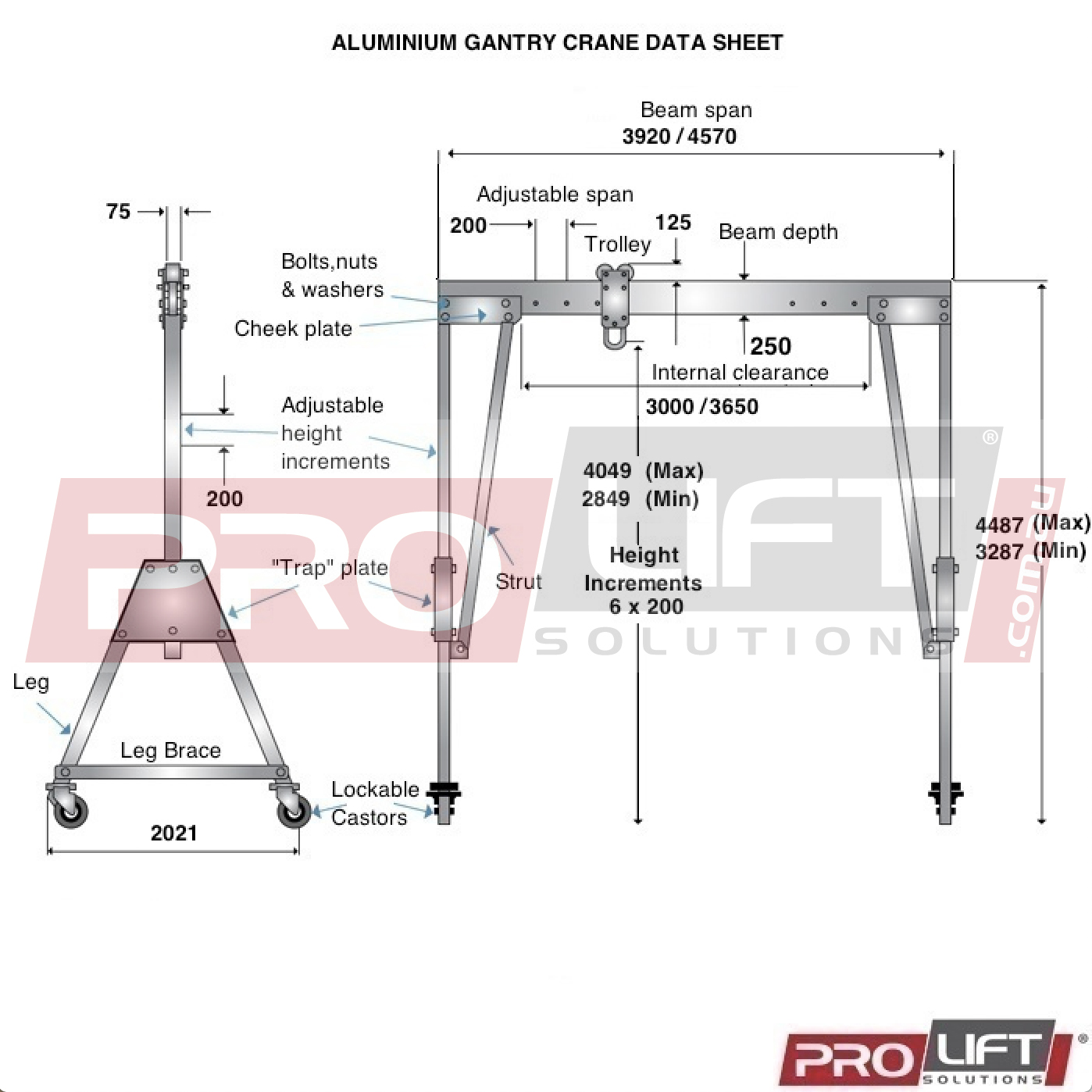

Beam lengths available 3920mm / 4570mm / 5500mm
