Description

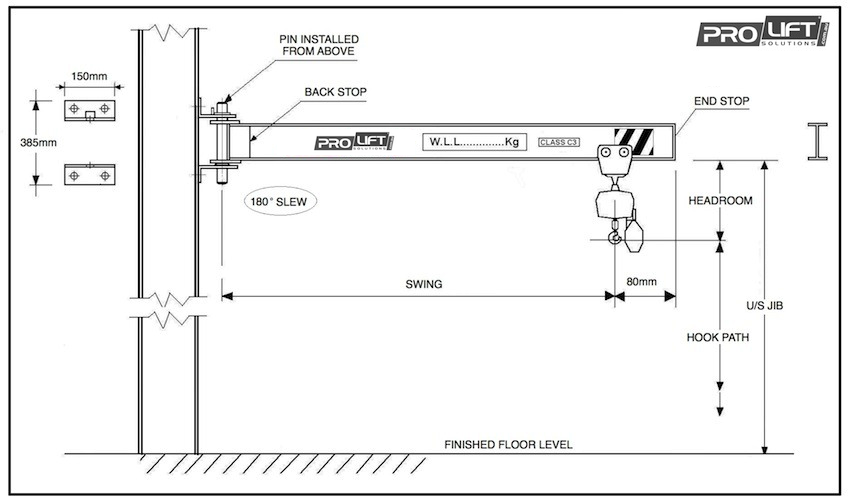

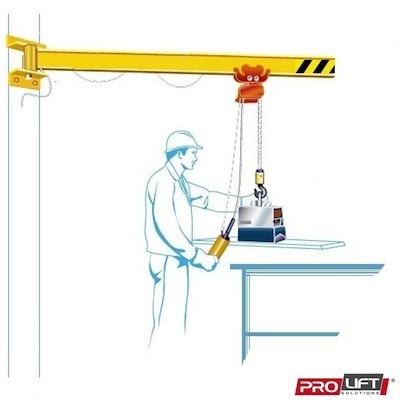

This slewing jib crane has been designed in accordance with the Australian Standards AS 1418 for lifting loads ranging from 50kg up to 250kg rated lifting capacity. Simply attach the slewing jib crane to your existing structure using the mounting wall brackets supplied. It is the responsibility of the purchaser to establish that the supporting structure or foundation is of adequate strength and stability in accordance with the relevant standards. The simple design of this wall mounted slewing jib crane makes it easy to assemble and operate with 180° manual slew rotation to cover your working area.

Crane specification:

•  175kg Capacity
•  2500mm Swing

•  Crane Classification C3/M3 AS1418

Crane is supplied in KIT FORM complete with the following:

•  Wall mounting brackets. (Wall fixing bolts are not included)
•  Certification to AS 1418 crane code.
•  25 year structural warranty certificate.
•  Crane signage to statutory requirements.
•  Crane assembly, erection & operator instruction manual.
•  Standard indoor paint treatment (Colour Harbour Blue B24)
•  Crane is supplied with end warning stripes, capacity signage & manufactures data plate.

Crane Features:

•  Simple to install
•  Crane supplied in kit form
•  Crane is built to Australian Standard AS1418

Note:

• Crane is built to order & lead times apply, for specific lead times contact Prolift.
• Prior to manufacture of crane a drawing will be provided for final approval.
• Maximum weight of Hoist + Trolley to not exceed 40kg.
• Should you require a shorter crane swing distance contact Prolift.
• It is the responsibility of the purchaser to establish that the supporting structure or foundation is of adequate strength and stability in accordance with the relevant standards.

CRANE OPTIONS

Prices for below crane options can be found under ‘MY CART’ in grey area at top of product page. Simply click the drop down box to make your selection & option price will be added to the crane base price. For hoisting and trolley options for this slewing jib crane contact Prolift.

Surface Treatments

Standard slewing jib crane treatment is Harbour Blue B24 suitable for indoors. Should you require a specific treatment not listed below contact Prolift.

1.  Safety Yellow Y14 – suitable for indoor
2.  Harbour Blue B24 – suitable for outdoor
3.  Safety Yellow Y14 – suitable for outdoor
4.  Client specification colour 2 coat paint system
5.  Hot dipped galvanised

Manufactures Data Report (MDR)

MDR includes the following:

•  Inspection and test plan
•  Welding data
•  Procedure qualification records
•  Welder qualification records
•  Test records (NDT)
•  Coating inspection reports
•  Material certificates
•  Certificate of compliance

If you have any questions, email us at: sales@prolift.com.au
