Description

This slewing jib crane has been designed in accordance with the Australian Standards AS 1418 for lifting loads ranging from 50kg up to 250kg rated lifting capacity. Simply attach the slewing jib crane to your existing structure using the mounting wall brackets supplied. It is the responsibility of the purchaser to establish that the supporting structure or foundation is of adequate strength and stability in accordance with the relevant standards. The simple design of this wall mounted slewing jib crane makes it easy to assemble and operate with 180° manual slew rotation to cover your working area.

Crane specification:

•  250kg Capacity
•  2000mm Swing

•  Crane Classification C3/M3 AS1418

Crane is supplied in KIT FORM complete with the following:

•  Wall mounting brackets. (Wall fixing bolts are not included)
•  Certification to AS 1418 crane code.
•  25 year structural warranty certificate.
•  Crane signage to statutory requirements.
•  Crane assembly, erection & operator instruction manual.
•  Standard indoor paint treatment (Colour Harbour Blue B24)
•  Crane is supplied with end warning stripes, capacity signage & manufactures data plate.

Crane Features:

•  Simple to install
•  Crane supplied in kit form
•  Crane is built to Australian Standard AS1418

Note:

• Crane is built to order & lead times apply, for specific lead times contact Prolift.

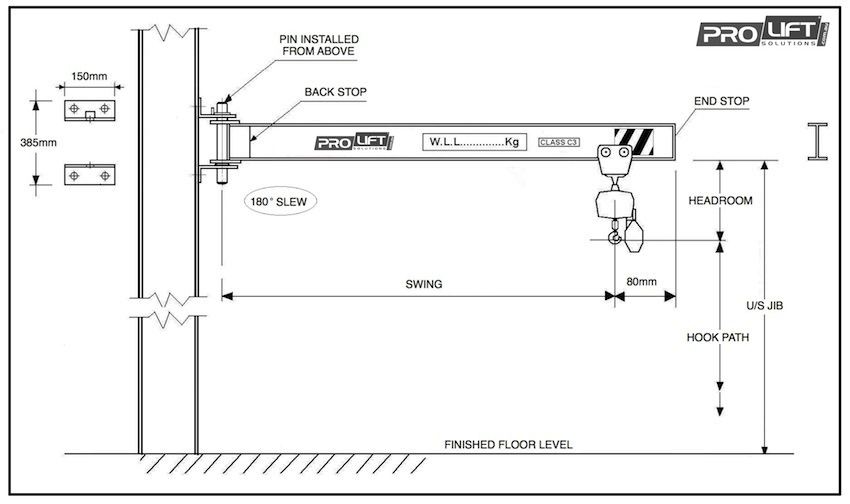

• Prior to manufacture of crane a drawing will be provided for final approval.
• Maximum weight of Hoist + Trolley to not exceed 40kg.
• Should you require a shorter crane swing distance contact Prolift.
• It is the responsibility of the purchaser to establish that the supporting structure or foundation is of adequate strength and stability in accordance with the relevant standards.

CRANE OPTIONS

Prices for below crane options can be found under ‘MY CART’ in grey area at top of product page. Simply click the drop down box for options to make your selection & option price will be  added to the crane base price.

Beam trolleys

HR refers to ‘Headroom”. Should you require a specific trolley not listed below please contact Prolift.

1.  Manual girder trolley (HR = 105mm)
2.  Manual ‘low headroom’ girder trolley (HR = 51.5mm)

Manual Hoist

Further information on hoists & trolleys can also be found in the hoisting equipment section on our website. Should you wish to discuss your lifting application in further detail or require a specific height not listed below, contact Prolift.

HOL refers to “Height of lift” & HCD refers to “Hand chain drop”

1.  Manual chain block 3m HOL / 2m HCD (Headroom = 280mm)
2.  Manual chain block 4m HOL / 3m HCD (Headroom = 280mm)
3.  Manual chain block 5m HOL / 4m HCD (Headroom = 280mm)
4.  Manual chain block 6m HOL / 5m HCD (Headroom = 280mm)

Electric Hoist

250kg Pacific electric chain hoist

• 240 voltage
• 1 chain falls
• Headroom = 400mm
• 6m lifting height as standard
• 5m pendant drop as standard
• 0-3.2m/min variable & 12.5m/min fast

Air Hoists

250kg JDN air hoist

• 1 chain falls
• Headroom 328mm
• 3m HOL as standard
• 2m PD as standard c/w emergency stop
• 8m/min variable speed
• Chain bucket

HOL refers to “Height of lift” & PD refers to “Pendant drop”

1. 4m HOL / 3m PD
2. 5m HOL / 4m PD
3. 6m HOL / 5m PD

Surface Treatments

Standard slewing jib crane treatment is Harbour Blue B24 suitable for indoors. Should you require a specific treatment not listed below contact Prolift.

1.  Safety Yellow Y14 – suitable for indoor
2.  Harbour Blue B24 – suitable for outdoor
3.  Safety Yellow Y14 – suitable for outdoor
4.  Client specification colour 2 coat paint system
5.  Hot dipped galvanised

Manufactures Data Report (MDR)

MDR includes the following:

•  Inspection and test plan
•  Welding data
•  Procedure qualification records
•  Welder qualification records
•  Test records (NDT)
•  Coating inspection reports
•  Material certificates
•  Certificate of compliance





If you have any questions, email us at: sales@prolift.com.au













Additional information

Weight	0.00 kg
